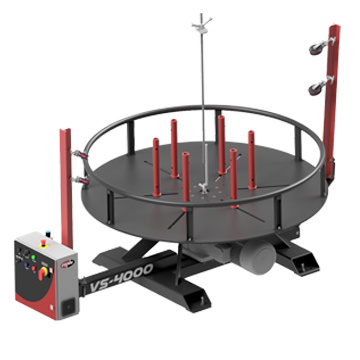

Vertical Shaft Payoff
Table-type payoff | Specific for carriers, bundles or reels
Features
• High speed models available
• Heavy duty construction
• Multiple accumulator options
• Custom configurations
Sizing
• Wire ranges from 0.015” – 0.625”
• Up to 7,000 lb. load capacity
• Table/basket size up to 100”

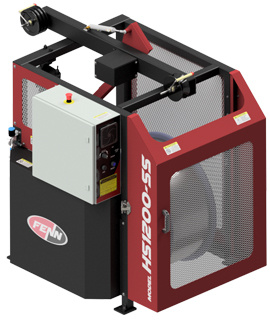

Horizontal Shaft Payoff
High-speed shaft driven payoff | Specific for reels
Features
• Easy roll-on loading
• Quick drive shaft connections
• Heavy duty construction
• High capacity pneumatic accumulator
Sizing
HS1200-SS
• 1,200 lb. capacity
• Up to 150 RPM
• Reel sizes from 24” – 32” diameter & 9” – 14” wide
• 1.5 HP. motor

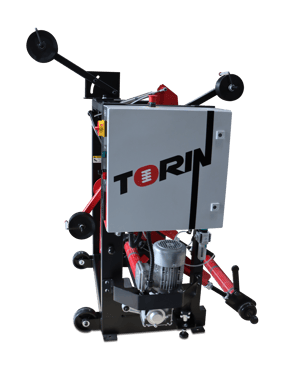

Rim Driven Payoff
Driven on the outside rim of the reel | Specific for reels
Features
• Easy roll-on loading
• Small footprint
• Triple loop pneumatic accumulator
Sizing
RD2100
• 2,100 lb. capacity
• Up to 45 RPM
• Reel sizes from 18” – 36” diameter & up to 22” wide
• 1 HP. motor

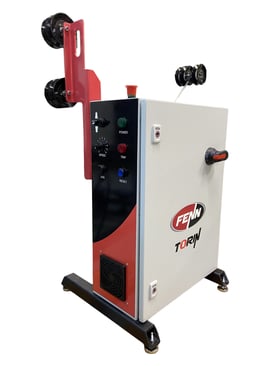

Features
• Ideal for small spools
• Easy loading
• Small, efficient footprint
• Light weight adjustable tension accumulator
• High speed options available
• Custom configurations
Sizing
SP75
• Wire ranges from 0.003” – 0.030”
• 75 lb. load capacity
• 170 RPM
• Reel sizes up to 12” D & 12”W
